The airport high-grade aluminum curved facade wall is a high-quality architectural exterior wall decoration material specifically designed for modern airport buildings. It is made of premium high-grade aluminum alloy sheets and shaped into smooth and elegant curved forms through advanced processing techniques. This unique curved design not only endows airport buildings with a distinctive appearance charm but also meets the special structural and functional requirements of airports. The thickness of the product can be customized according to actual engineering needs, and the common thickness range is between [2.5]mm and [5]mm, ensuring a light appearance while guaranteeing strength.
The large Airport High-grade Aluminum Curved Facade Wall builds a solid fortress for the terminal building. Its precise splicing process and customized colors perfectly integrate into the overall style of the airport.
Product Applications
Airport Terminals: As the main exterior wall decoration of the terminal building, it enhances the overall image and recognition of the airport and creates a comfortable and beautiful travel environment for passengers.
Airport Lounges: Provides good thermal insulation and sound insulation effects for the airport lounges, improving the waiting environment.
Airport VIP Rooms: The high-grade aluminum curved facade wall complements the luxurious decoration style of the VIP rooms, providing a private and elegant resting space for VIPs.
Airport Commercial Areas: Used in the commercial areas of the airport, it can attract more customers, enhance the commercial atmosphere, and provide a good display space for merchants.
Technical Specifications(1)
Item
Parameters
Material
Aluminum alloy (6063/T6, etc.)
Thickness
Usually 2.0mm – 4.0mm, customizable
Perforation Rate
10% – 50%, adjustable according to requirements
Hole Diameter
3mm – 20mm, various specifications available
Surface Treatment
PVDF, Polyester, Anodizing, powder coating, fluorocarbon paint, etc.
Color
Customizable according to color cards, common colors include silver white, gray, black, gold, etc.
Size
Conventional sizes are 1200mm×2400mm, 1500mm×3000mm, etc., can also be customized as required
Technical Specifications(2)
Specification
Details
Weight
2.5–3.5 kg per square meter (depending on thickness)
Finish Options
Glossy, Matte, Wood Grain, Brushed, and more
Design
Flower Pattern,geometric design,intricate designs,abstract art,text logos, etc.
Perforation Patterns
Circular, square, diamond, hexagonal, and other patterns available.
Fire Resistance
A2 Fire Rating (non-combustible)
Warranty
10–15 years (depending on finish and application)
Applications
all cladding, ceilings, room dividers, decorative screens,facades, partitions, fences, sunshades, interior decoration, etc.
Installation
Wall mounting (screws or adhesive strips)/Easy installation with various mounting options (screws, brackets, frames)/Includes direct fixing, framed systems, or hook-on panels depending on application
Other Services
Customization Services
Finishes and Customization Options:
Anodized Finish: Provides a sleek, metallic look with added protection against corrosion.
Powder-Coated Finish: Offers a wide range of color options with a smooth, durable coating.
Brushed Aluminum: Features a stylish, matte finish for a contemporary appearance.
Custom Perforations: Tailor the hole sizes, patterns, and open area percentage to your specific design and functional needs.
Gallery

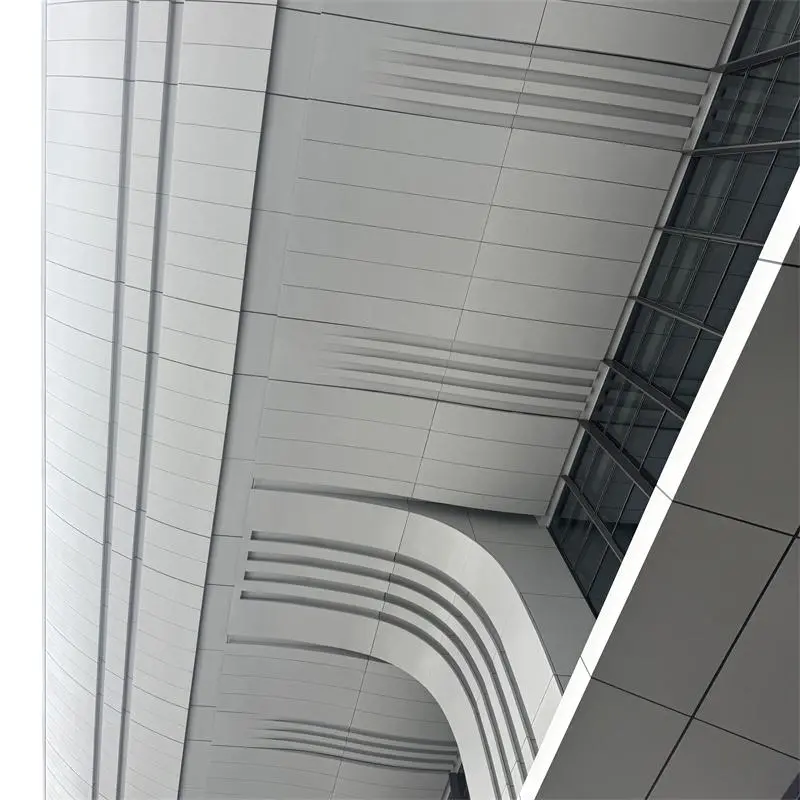

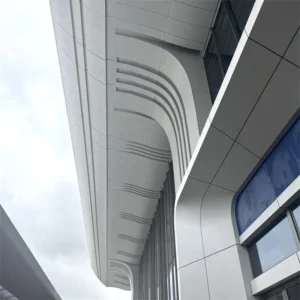

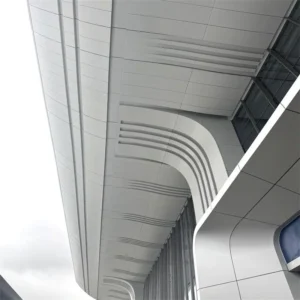

Weather-Resistant Aluminum Panels, engineered for outdoor durability.Streamlined Aluminum Façade Sculpting the Future of Aviation Hubs.Sustainable Building Skin Woven from Modular Aluminum Units.
Meterny Aluminum Panel Factory Workers in Action: From Cutting to Coating.
Installation Guide
Installing METERNY’s(Airport High-grade Aluminum Curved Facade Wall)aluminum panels is straightforward, and we provide detailed installation instructions to ensure your project is completed efficiently. Here’s a basic outline of the installation process:
Prepare the Surface
Ensure that the surface to which the Airport High-grade Aluminum Curved Facade Wall will be attached is clean, flat, and dry. Any surface irregularities should be addressed to ensure proper adhesion and alignment of the Airport High-grade Aluminum Curved Facade Wall.
Install the Framework
Use a suitable metal framework to support the Airport High-grade Aluminum Curved Facade Wall. The framework should be aligned according to the measurements specified in the design.
Panel Attachment
Airport High-grade Aluminum Curved Facade Wall can be installed using clips, screws, or rivets. The method of attachment will depend on the type of panel and the specific requirements of your project. Ensure that all panels are securely fastened to prevent movement.
Final Checks
After installation, conduct a final inspection to ensure that all Airport High-grade Aluminum Curved Facade Walls are properly aligned and securely fastened. Clean the Airport High-grade Aluminum Curved Facade Wall to remove any installation debris.
For more detailed instructions or professional installation services, please contact us.
Customization Services
We offer comprehensive customization services, including but not limited to pattern design, size adjustments, and color matching, to cater to your unique decorative needs. Simply provide your creative concept, and our professional design team will tailor-make a Airport High-grade Aluminum Curved Facade Walls exclusively for you.
Ordering Process
Inquire Needs: Contact us to provide your specific requirements and customization needs.
Quote Confirmation: We will provide a detailed quote and delivery time based on your requirements.
Contract Signing: After both parties confirm the quote and delivery time, a formal contract is signed.
Production and Processing: Production and processing are carried out according to the contract requirements.
Quality Inspection: Rigorous quality inspection of finished products to ensure compliance with standards.
Packaging and Shipment: Professional packaging to ensure product safety during transportation.
After-Sales Service: Provide comprehensive after-sales service to address your concerns.
Production and Packaging
Production Process: Advanced CNC stamping and engraving technologies, laser welding and engraving technologies, as well as bending, rolling, and grinding processes are adopted to ensure product accuracy and quality.
Packaging Methods:
Basic Protection: Apply a protective coating on the decorative surface of the Middle East standard Aluminum Clip-in Ceiling and add a layer of bubble wrap.
Company Brand Packaging: The decorative surface of the aluminum plate has a film with the company logo, and then protected with bubble wrap.
Custom Packaging: The customer’s unique logo can be printed on the film, and then protected with bubble wrap.
Enhanced Protection: The decorative surface has a protective coating, and blue corner protectors are added to the corners of the plate, and the whole is wrapped with bubble wrap.
High-Quality and Safe Packaging: The decorative surface has a film, the corners of the plate have blue corner protectors, and after being wrapped with bubble wrap, it is placed in a durable laminated wooden box.
Certification and Service
Certification：The product has passed international certifications such as CE, SGS and ISO 9001, meeting relevant quality and environmental standards.
Service：We provide comprehensive pre-sales, in-sales and after-sales services, including product consultation, design plan provision, installation guidance and after-sales maintenance to ensure that customers can use the product smoothly.
After-Sales Service
Warranty Period: Provide a [10]-year quality guarantee. During the warranty period, if there are any quality problems with the products, we will provide free repair or replacement services.
Technical Support: Provide professional technical consultation and support to customers, assisting them in solving problems encountered during the installation and use of products.
Regular Follow-up: Regularly follow up with customers to understand the use of products, collect their opinions and suggestions, and continuously improve our products and services.
Frequently Asked Questions (FAQs)
FAQ 1: What’s the wind load resistance of this Airport High-grade Aluminum Curved Facade Wall?
A: Constructed with aerospace-grade 6061-T6 aluminum alloy and patented mortise-tenon joints, it passes class 8 wind pressure tests (withstanding 50m/s instantaneous wind speed), suitable for international hub airport terminals.
FAQ 2: How long does the fluorocarbon coating last?
A: Applying three-coat two-bake PVDF process, it withstands 3000h salt spray testing without corrosion, with theoretical durability over 25 years and 10-year colorfastness warranty.
FAQ 3: How is the double-curved precision achieved?
A: Utilizing 5-axis CNC machining centers with vacuum thermoforming technology, surface deviation is controlled within ±0.3mm, meeting terminal’s streamlined design requirements.
FAQ 4: What’s the installation duration?
A: Modular unitized design with pre-installed hanging systems enables 200㎡ daily installation, reducing construction time by 40% compared to traditional curtain walls.
FAQ 5: Does it comply with fire codes?
A: Certified GB8624-2012 class A2 non-combustible, integrated with flame-retardant sealing strips, complying with “Fire Protection Code for Civil Airport Terminals”.
Exceptional Aesthetics: The smooth curved lines add a sense of dynamism and modernity to airport buildings, perfectly integrating with the overall grand and stylish style of the airport. Through special surface treatment processes such as fluorocarbon spraying and anodizing, a rich variety of colors and textures can be presented, enabling the Airport High-grade Aluminum Curved Facade Wall to show charming visual effects under different lighting conditions.
High Strength and Durability: Selecting high-quality aluminum alloy materials, it has excellent strength and hardness, capable of withstanding various external forces in the complex environment of the airport, such as strong winds and heavy rains. At the same time, the aluminum alloy material has good corrosion resistance.
Good Thermal Insulation and Sound Insulation Performance: The design of the Airport High-grade Aluminum Curved Facade Wall is combined with special thermal insulation and sound insulation materials, which can effectively block the transfer of external heat, reduce the energy consumption of the air conditioning system, and achieve energy-saving effects.
Flexible Installation Method: Adopting a modular design, the components are closely connected and easy to install. According to different building structures and design requirements, the installation method can be flexibly adjusted, greatly shortening the construction period and reducing the impact on the normal operation of the airport.
Environmental Protection and Sustainability: The aluminum alloy material is a recyclable and environmentally friendly material. After the product reaches the end of its service life, it can be recycled and reprocessed, reducing resource waste and environmental pollution.
Contact US
For more information or to place an order, please contact our customer service team. We are here to help you transform your architectural vision into reality with our Airport High-grade Aluminum Curved Facade Wall.
