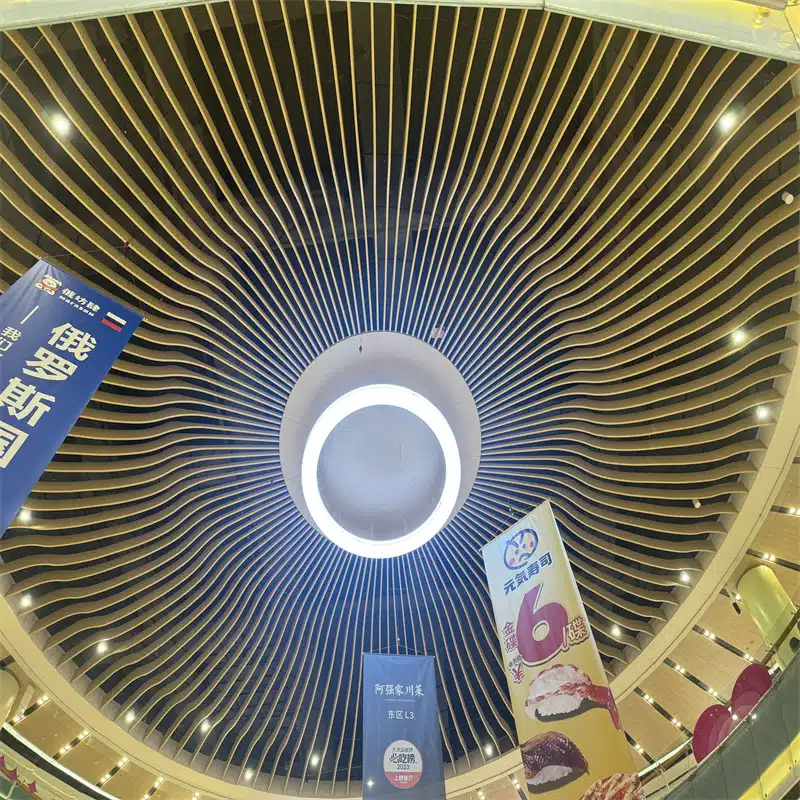

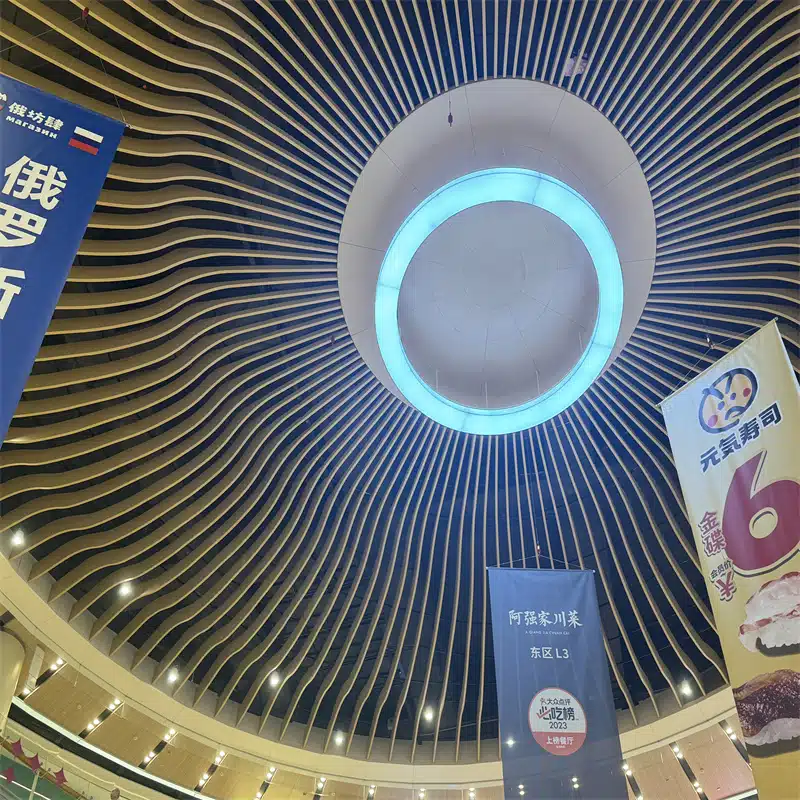

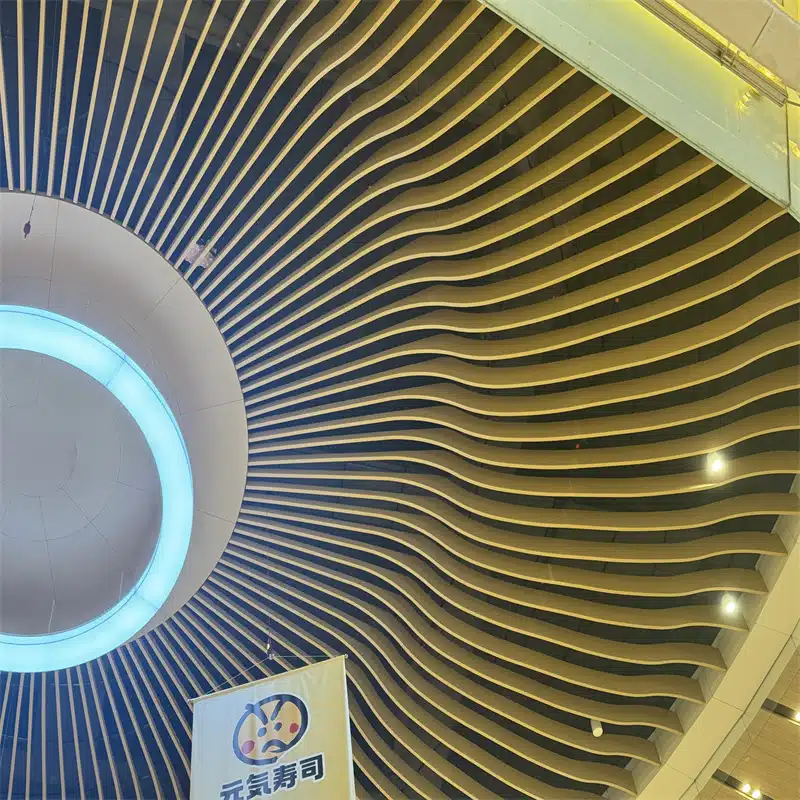

Creative Shopping Mall Aluminum Baffle Ceiling

Product Overview

As the new style of modern commercial space aesthetics, Creative Shopping Mall Aluminum Baffle Ceiling is tailor-made for high-end shopping centers, large shopping malls and other commercial spaces with its unique design concept, excellent acoustic performance and outstanding decorative effect. It is made of high quality aluminum alloy, combined with exquisite processing technology, adding a touch of fashion and high-end atmosphere to your shopping environment.

Product Specifications

1. Base Material: High – purity aluminum alloy with an aluminum content of not less than 95%.
2. Surface Treatment Materials:
   • Powder Coating: High – quality polyester powder is used, and the coating thickness is 60 – 80 microns.
   • Woodgrain Finish: A special transfer printing process is adopted. The imitation woodgrain texture is vivid, and the coating thickness is approximately 70 – 90 microns.
3. Panel Dimensions:
   • Length: Standard lengths are 1000 mm, 2000 mm, 3000 mm, and 4000 mm. Custom lengths can also be provided according to specific project requirements.
   • Width: Common widths are 50 mm, 100 mm, 150 mm, and 200 mm. These widths can be adjusted according to different design and installation requirements.
   • Thickness: The panel thickness is generally 0.8 mm, 1.0 mm, 1.2 mm, and 1.5 mm. Thicker panels are suitable for areas with higher load – bearing requirements or larger installation spans.
4. Acoustic Performance:
   • Noise Reduction Coefficient (NRC): When equipped with sound – absorbing materials (such as glass wool or polyester fiber), the NRC can reach 0.6 – 0.8.
   • Sound Transmission Class (STC): The STC value can reach 30 – 40, providing good sound insulation between different areas in the mall.
5. Fire – Resistance Performance:
   • Fire Rating: It meets the national non – combustible material standard, with a fire – resistance rating of Class A. It will not burn or release toxic gases in case of fire, ensuring the safety of people and property in the mall.
6. Installation and Structure:
   • Suspension System: A concealed or exposed T – shaped aluminum alloy keel system is adopted. The keel thickness is 1.0 mm – 1.5 mm, providing stable support for the baffle ceiling. The connection between the keel and the ceiling panels is firm, and the installation can be quickly completed using special fasteners.
   • Panel Connection: The panels are connected by snap – on or slot – in methods, ensuring a seamless appearance and easy disassembly for maintenance.
7. Durability and Maintenance:
   • Corrosion Resistance: After surface treatment, the aluminum baffle ceiling can withstand more than 1000 hours of salt – spray testing without obvious corrosion, ensuring long – term use in a humid mall environment.
   • Maintenance Requirements: Regular cleaning with a soft cloth and mild detergent is sufficient to keep the ceiling clean. The smooth surface of the panels does not accumulate dust or dirt easily, and the color and appearance remain stable for at least 10 – 15 years under normal use conditions.

I. Innovative Design, Exuding Unique Charms

1. Diverse Shapes
   Breaking free from the limitations of traditional baffle ceilings, we offer a variety of unique shape options. Besides the classic straight – bar shape, there are creative shapes such as wavy and curved ones, adding flexibility and variation to the mall space.
2. Custom – made Patterns
   Patterns can be customized according to the mall’s theme, brand image, or specific events. From delicate geometric patterns to traditional patterns rich in cultural heritage, and even futuristic technological elements, every pattern can be precisely presented on the Creative Shopping Mall Aluminum Baffle Ceiling through advanced printing techniques.
3. Rich Color System
   We have an extensive color selection. Whether it’s the fresh and bright candy colors to create a cheerful and pleasant shopping atmosphere, or the calm and elegant neutral colors to showcase a high – end and luxurious sense of quality, we can meet the design needs of different malls.

II. Excellent Performance, Ensuring a Comfortable Experience

1. Outstanding Acoustic Effect
   Shopping malls are crowded with people and can be noisy. Our Creative Shopping Mall Aluminum Baffle Ceiling adopts professional acoustic design, combined with sound – absorbing materials, which can effectively reduce noise. Its Noise Reduction Coefficient (NRC) can reach 0.6 – 0.8, significantly reducing echoes and noise interference.
2. Good Ventilation Performance
   The unique bar – shaped structure design enables air to circulate freely within the ceiling space, promoting air circulation. This not only helps improve the air quality in the mall, reducing the feeling of stuffiness, but also reduces the load on the air – conditioning system, achieving energy conservation and emission reduction. Good ventilation performance is particularly important in high – traffic areas such as food courts where odors tend to accumulate.
3. Exceptional Fire – resistance Performance
   High – quality fire – resistant aluminum alloy materials are used, meeting strict national fire – prevention standards, with a fire – resistance rating of Class A. In the event of a fire, the Creative Shopping Mall Aluminum Baffle Ceiling will not burn and will not release toxic smoke, providing reliable protection for the people and property in the mall and ensuring that losses can be minimized in case of an emergency.

III. Quality Assurance, Durable and Long – lasting

1. Robust and Durable Materials
   High – strength aluminum alloy materials are selected, which have excellent anti – deformation and anti – corrosion capabilities. Through special surface treatment processes such as anodizing or powder coating, its wear – resistance and anti – oxidation properties are further enhanced.
2. Easy – maintenance Design
   Considering the convenience of maintenance in mall operations, the Creative Shopping Mall Aluminum Baffle Ceiling adopts a modular design. Individual panels are easy to remove and replace. If there is any damage or cleaning is required, maintenance work can be quickly completed without large – scale demolition.

IV. Convenient Installation, Efficient Construction

1. Quick – installation System
   Equipped with a specially designed quick – installation system, whether it is a concealed or exposed T – shaped aluminum alloy keel, it can be quickly and accurately connected to the Creative Shopping Mall Aluminum Baffle Ceiling. This simple and easy – to – understand installation method reduces the complexity of the construction process, greatly shortens the installation period, and minimizes the impact on the normal business of the mall, ensuring that the mall can welcome customers with a new look as soon as possible.
2. Professional Installation Guidance
   We have a professional technical team that provides customers with comprehensive installation guidance and technical support. From the project planning stage, we will provide detailed installation plans and suggestions based on the actual situation of the mall to ensure a smooth installation process, leaving customers with no worries.

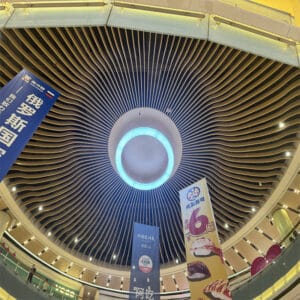

Gallery

V. After – sales Service

We have a professional after – sales service team to provide you with all – round support and guarantee. From product installation guidance to post – maintenance, we will serve you wholeheartedly to ensure that you have no worries during the use process.
If you are interested in our Creative Shopping Mall Aluminum Baffle Ceiling, please feel free to contact us at any time. We will provide you with detailed product information and professional solutions, and look forward to working with you to create a beautiful commercial space!

If you want to know more details ,plc click in this link to youtube:https://youtu.be/JGJdzeckyXs

Contact Us:

If you’re interested in our Creative Shopping Mall Aluminum Baffle Ceiling , feel free to contact us for more information or a free quote!

📞 Phone: +86 18566054354
📧 Email: damon@meterny.com

Technical Specifications

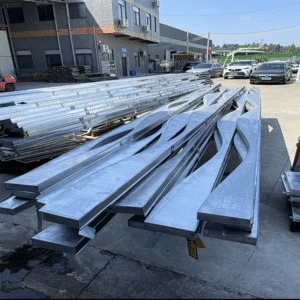

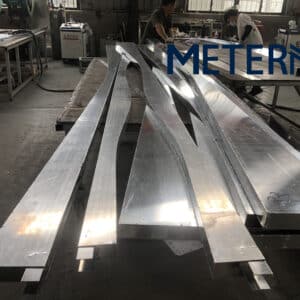

Factory Machine

Installation Guide

Installing METERNY’s( Creative Shopping Mall Aluminum Baffle Ceiling )aluminum panels is straightforward, and we provide detailed installation instructions to ensure your project is completed efficiently. Here’s a basic outline of the installation process:

1. Prepare the Surface
   Ensure that the surface to which the Creative Shopping Mall Aluminum Baffle Ceiling will be attached is clean, flat, and dry. Any surface irregularities should be addressed to ensure proper adhesion and alignment of the panels.
2. Install the Framework
   Use a suitable metal framework to support the panels. The framework should be aligned according to the measurements specified in the design.
3. Panel Attachment
   Creative Shopping Mall Aluminum Baffle Ceiling can be installed using clips, screws, or rivets. The method of attachment will depend on the type of panel and the specific requirements of your project. Ensure that all panels are securely fastened to prevent movement.
4. Final Checks
   After installation, conduct a final inspection to ensure that all Creative Shopping Mall Aluminum Baffle Ceiling for Malls are properly aligned and securely fastened. Clean the panels to remove any installation debris.

For more detailed instructions or professional installation services, please contact us.

Why Choose Creative Shopping Mall Aluminum Baffle Ceiling?

1. Unique Visual Appeal
   The Creative Shopping Mall Aluminum Baffle Ceiling creates a modern and stylish atmosphere, giving shopping malls a distinctive and elegant look that attracts visitors.
2. Flexible Design Options
   With various colors, shapes, and finishes available, these ceilings offer endless possibilities for customization to suit your mall’s branding or architectural concept.
3. Enhanced Space Functionality
   The open structure improves airflow, optimizes lighting integration, and ensures a comfortable environment for shoppers.
4. Cost-Effective Solution
   Creative Shopping Mall Aluminum Baffle Ceiling are lightweight, easy to install, and low maintenance, reducing both initial installation and long-term upkeep costs.
5. Strong and Reliable
   Resistant to fire, corrosion, and wear, these ceilings are built to last, offering exceptional durability even in high-traffic commercial spaces.
